7 Bivariate Data

---

Given some data

## Bivariate Data from USArrests
xy <- USArrests[,c('Murder','UrbanPop')]
colnames(xy) <- c('y','x')

first inspect it, as in Part I.

# Inspect Dataset
# head(xy)
# summary(xy)

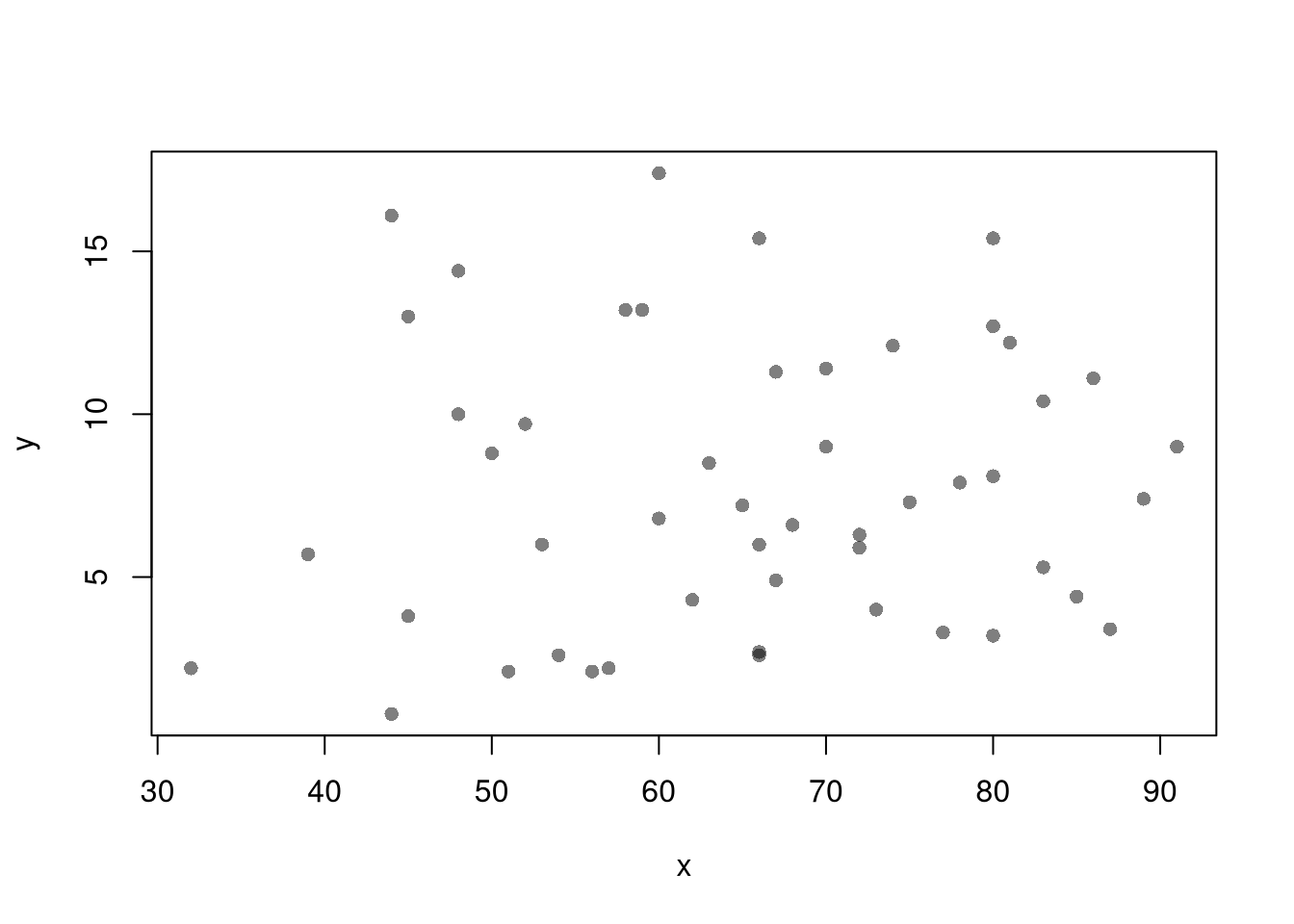

plot(y~x, xy, col=grey(.5,.5), pch=16)

7.1 Simple Linear Regression

Simple Linear Regression refers to fitting a linear model to bivariate data. Specifically, the model is \[ y_i=\alpha+\beta x_i+\epsilon_{i} \] and objective function is \[ min_{\alpha, \beta} \sum_{i=1}^{n} \left( \epsilon_{i} \right)^2 = min_{\alpha, \beta} \sum_{i=1}^{n} \left( y_i - [\alpha+\beta x_i] \right). \] Minimizing the squared errors yields point estimates \[ \hat{\alpha}=\bar{y}-\hat{\beta}\bar{x} = \widehat{\mathbb{E}}[Y] - \hat{\beta} \widehat{\mathbb{E}}[X] \\ \hat{\beta}=\frac{\sum_{i}^{}(x_i-\bar{x})(y_i-\bar{y})}{\sum_{i}^{}(x_i-\bar{x})^2} = \frac{\widehat{Cov}[X,Y]}{\widehat{\mathbb{V}}[X]} \] and predictions \[ \hat{y}_i=\hat{\alpha}+\hat{\beta}x_i\\ \hat{\epsilon}_i=y_i-\hat{y}_i \]

## Estimate Regression Coefficients
reg <- lm(y~x, dat=xy)
reg

##
## Call:
## lm(formula = y ~ x, data = xy)
##
## Coefficients:
## (Intercept)            x
##     6.41594      0.02093

## Point Estimates
coef(reg)

## (Intercept)           x
##  6.41594246  0.02093466

To qualitatively analyze the ‘’Goodness of fit’’, we plot our predictions.

## Plot Data and Predictions
library(plotly)
xy$ID <- rownames(USArrests)
xy$pred <- predict(reg)
xy$resid <- resid(reg)
fig <- plotly::plot_ly(
  xy, x=~x, y=~y,
  mode='markers',
  type='scatter',
  hoverinfo='text',
  marker=list(color=grey(0,.25), size=10),
  text=~paste('<b>', ID, '</b>',
              '<br>Urban  :', x,
              '<br>Murder :', y,
              '<br>Predicted Murder :', round(pred,2),
              '<br>Residual :', round(resid,2)))
## Add Legend
fig <- plotly::layout(fig,
          showlegend=F,
          title='Crime and Urbanization in America 1975',
          xaxis = list(title='Percent of People in an Urban Area'),
          yaxis = list(title='Homicide Arrests per 100,000 People'))
## Plot Model Predictions
add_trace(fig, x=~x, y=~pred,
    inherit=F, hoverinfo='none',
    mode='lines+markers', type='scatter',
    color=I('black'),
    line=list(width=1/2),
    marker=list(symbol=134, size=5))

To quantitatively analyze GoF, we compute \(R^2\) using the sums of squared errors (Total, Explained, and Residual) \[ \underbrace{\sum_{i}(y_i-\bar{y})^2}_\text{TSS}=\underbrace{\sum_{i}(\hat{y}_i-\bar{y})^2}_\text{ESS}+\underbrace{\sum_{i}\hat{\epsilon_{i}}^2}_\text{RSS}\\ R^2 = \frac{ESS}{TSS}=1-\frac{RSS}{TSS} \] Note that \(R^2\) is also called the coefficient of determination.

## Manually Compute Goodness of Fit
Ehat <- resid(reg)
RSS  <- sum(Ehat^2)
Y <- xy$y
TSS  <- sum((Y-mean(Y))^2)
R2 <- 1 - RSS/TSS
R2

## [1] 0.00484035

## Check R2
summary(reg)$r.squared

## [1] 0.00484035

7.2 Variability Estimates

A regression coefficient is a statistic. And, just like all statistics, we can calculate

• standard deviation: variability within a single sample.
• standard error: variability across different samples.
• confidence interval: range your statistic varies across different samples.
• null distribution: the sampling distribution of the statistic under the null hypothesis (assuming your null hypothesis was true).
• p-value the probability you would see something as extreme as your statistic when sampling from the null distribution.

Note that values reported by your computer do not necessarily satisfy this definition. To calculate these statistics, we will estimate variability using data-driven methods. (For some theoretical background, see, e.g., https://www.sagepub.com/sites/default/files/upm-binaries/21122_Chapter_21.pdf.)

We first consider the simplest, the jackknife. In this procedure, we loop through each row of the dataset. And, in each iteration of the loop, we drop that observation from the dataset and reestimate the statistic of interest. We then calculate the standard deviation of the statistic across all ``subsamples’’.

## Jackknife Standard Errors for OLS Coefficient
jack_regs <- lapply(1:nrow(xy), function(i){
    xy_i <- xy[-i,]
    reg_i <- lm(y~x, dat=xy_i)
})
jack_coefs <- sapply(jack_regs, coef)['x',]
jack_se <- sd(jack_coefs)
### classic_se <- sqrt(diag(vcov(reg)))[['x']]

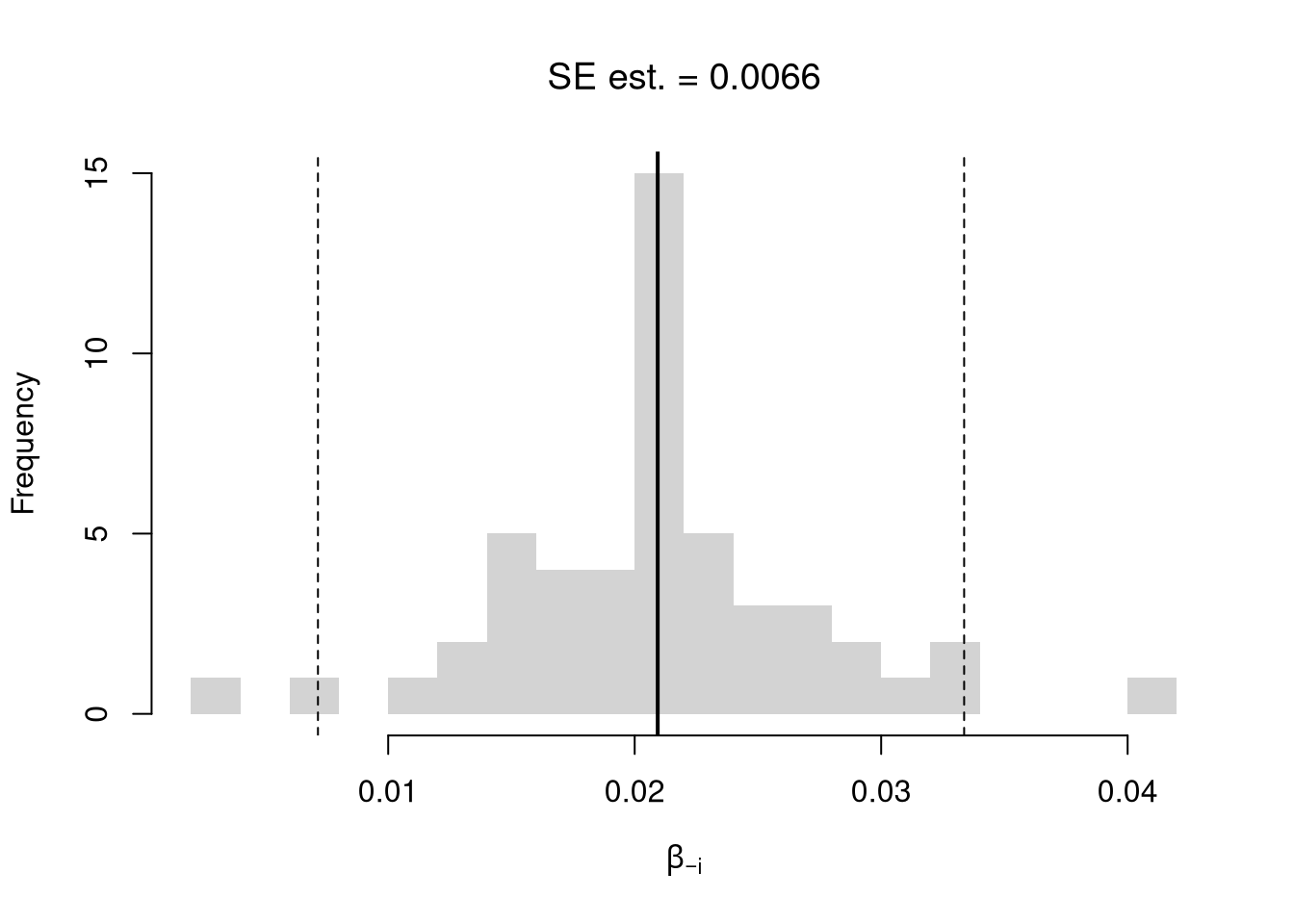

## Jackknife Sampling Distribution
hist(jack_coefs, breaks=25,
    main=paste0('SE est. = ', round(jack_se,4)),
    font.main=1, border=NA,
    xlab=expression(beta[-i]))
## Original Estimate
abline(v=coef(reg)['x'], lwd=2)
## Jackknife Confidence Intervals
jack_ci_percentile <- quantile(jack_coefs, probs=c(.025,.975))
abline(v=jack_ci_percentile, lty=2)

## Plot Normal Approximation
## jack_ci_normal <- jack_mean+c(-1.96, +1.96)*jack_se
## abline(v=jack_ci_normal, col="red", lty=3)

There are several resampling techniques. The other main one is the bootstrap, which resamples with replacement for an arbitrary number of iterations. When bootstrapping a dataset with \(n\) observations, you randomly resample all \(n\) rows in your data set \(B\) times. Random subsampling is one of many hybrid approaches that tries to combine the best of both worlds.

	Sample Size per Iteration	Number of Iterations	Resample
Bootstrap	\(n\)	\(B\)	With Replacement
Jackknife	\(n-1\)	\(n\)	Without Replacement
Random Subsample	\(m < n\)	\(B\)	Without Replacement

## Bootstrap
boot_regs <- lapply(1:399, function(b){
    b_id <- sample( nrow(xy), replace=T)
    xy_b <- xy[b_id,]
    reg_b <- lm(y~x, dat=xy_b)
})
boot_coefs <- sapply(boot_regs, coef)['x',]
boot_se <- sd(boot_coefs)

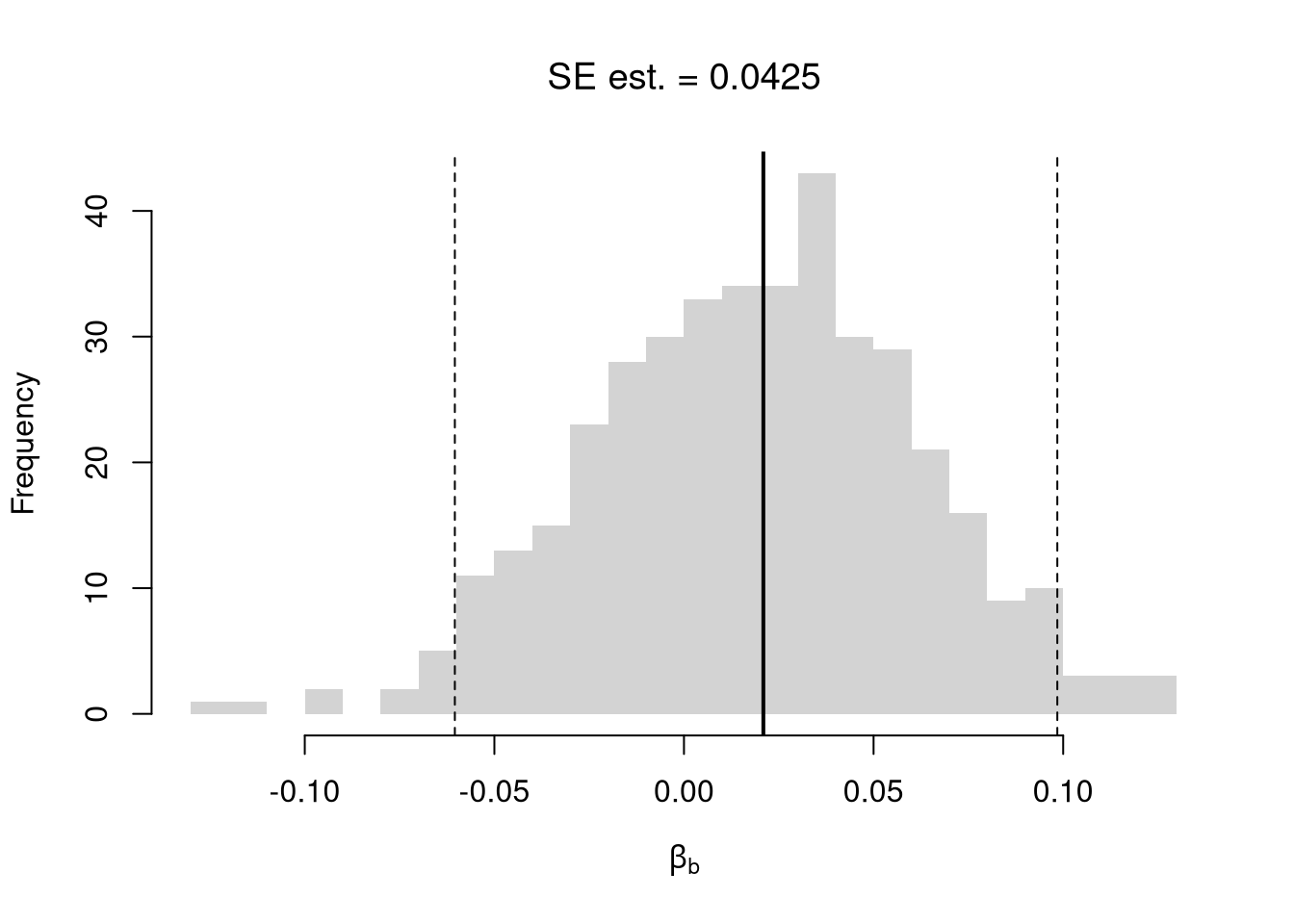

hist(boot_coefs, breaks=25,
    main=paste0('SE est. = ', round(boot_se,4)),
    font.main=1, border=NA,
    xlab=expression(beta[b]))
boot_ci_percentile <- quantile(boot_coefs, probs=c(.025,.975))
abline(v=boot_ci_percentile, lty=2)
abline(v=coef(reg)['x'], lwd=2)

## Random Subsamples
rs_regs <- lapply(1:399, function(b){
    b_id <- sample( nrow(xy), nrow(xy)-10, replace=F)
    xy_b <- xy[b_id,]
    reg_b <- lm(y~x, dat=xy_b)
})
rs_coefs <- sapply(rs_regs, coef)['x',]

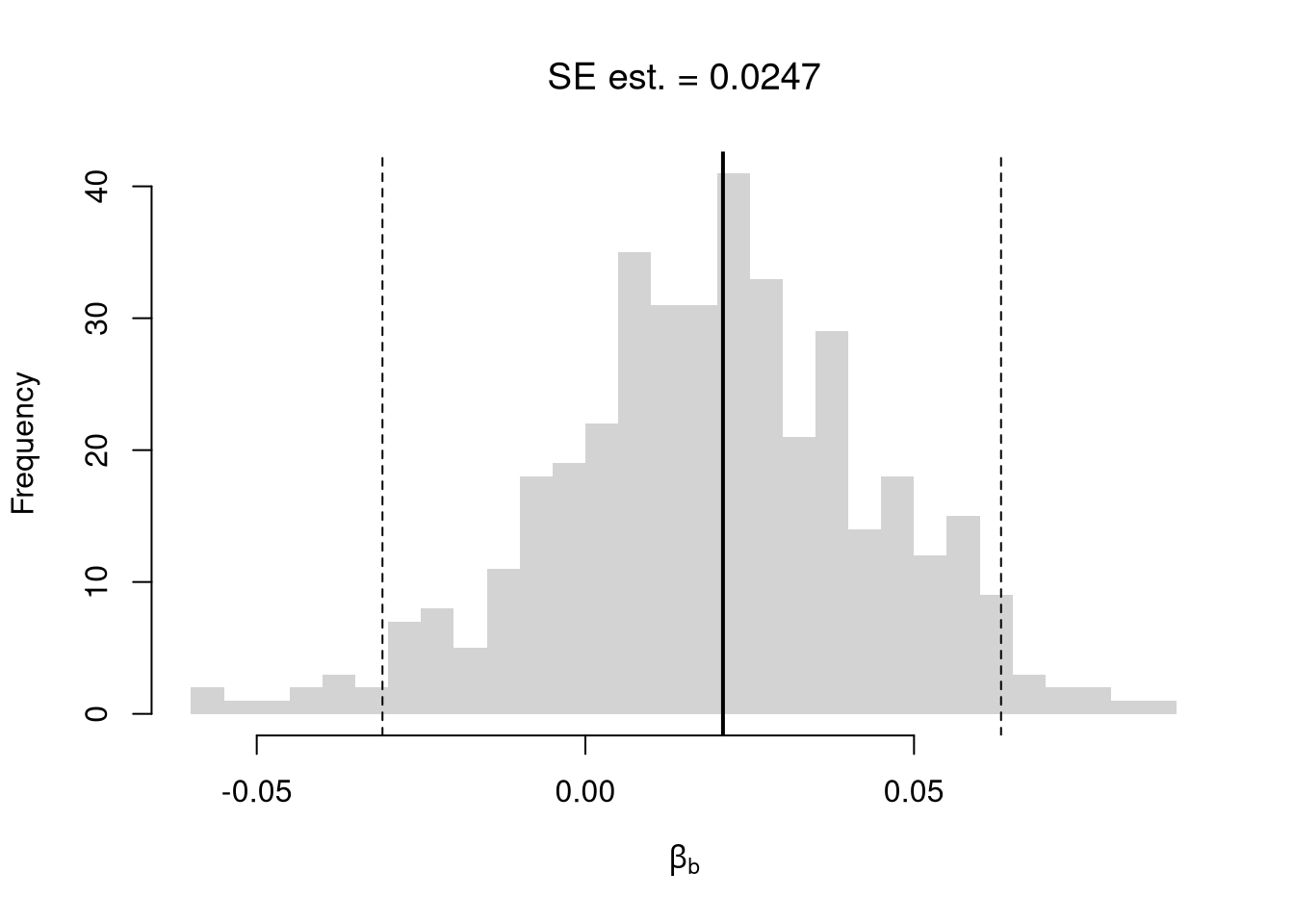

rs_se <- sd(rs_coefs)

hist(rs_coefs, breaks=25,
    main=paste0('SE est. = ', round(rs_se,4)),
    font.main=1, border=NA,
    xlab=expression(beta[b]))
abline(v=coef(reg)['x'], lwd=2)
rs_ci_percentile <- quantile(rs_coefs, probs=c(.025,.975))
abline(v=rs_ci_percentile, lty=2)

We can also bootstrap other statistics, such as a t-statistic or \(R^2\). We do such things to test a null hypothesis, which is often ``no relationship’’. We are rarely interested in computing standard errors and conducting hypothesis tests for two variables. However, we work through the ideas in the two-variable case to better understand the multi-variable case.

7.3 Hypothesis Tests

There are two main ways to conduct a hypothesis test. We do this using data-driven methods that assume much less about the data generating process.

Invert a CI One main way to conduct hypothesis tests is to examine whether a confidence interval contains a hypothesized value. Does the slope coefficient equal \(0\)? For reasons we won’t go into in this class, we typically normalize the coefficient by its standard error: \[ \hat{t} = \frac{\hat{\beta}}{\hat{\sigma}_{\hat{\beta}}} \]

tvalue <- coef(reg)['x']/jack_se

jack_t <- sapply(jack_regs, function(reg_b){
    ## Data
    xy_b <- reg_b$model
    ## Coefficient
    beta_b <- coef(reg_b)[['x']]
    t_hat_b <- beta_b/jack_se
    return(t_hat_b)
})

hist(jack_t, breaks=25,
    main='Jackknife t Density',
    font.main=1, border=NA,
    xlab=expression(hat(t)[b]),
    xlim=range(c(0, jack_t)) )
abline(v=quantile(jack_t, probs=c(.025,.975)), lty=2)
abline(v=0, col="red", lwd=2)

Impose the Null We can also compute a null distribution. We focus on the simplest, the bootstrap, where loop through a large number of simulations. In each iteration of the loop, we drop impose the null hypothesis and reestimate the statistic of interest. We then calculate the standard deviation of the statistic across all ``resamples’’. Specifically, we compute the distribution of t-values on data with randomly reshuffled outcomes (imposing the null), and compare how extreme the observed value is.

## Null Distribution for Beta
boot_t0 <- sapply( 1:399, function(b){
    xy_b <- xy
    xy_b$y <- sample( xy_b$y, replace=T)
    reg_b <- lm(y~x, dat=xy_b)
    beta_b <- coef(reg_b)[['x']]
    t_hat_b <- beta_b/jack_se
    return(t_hat_b)
})

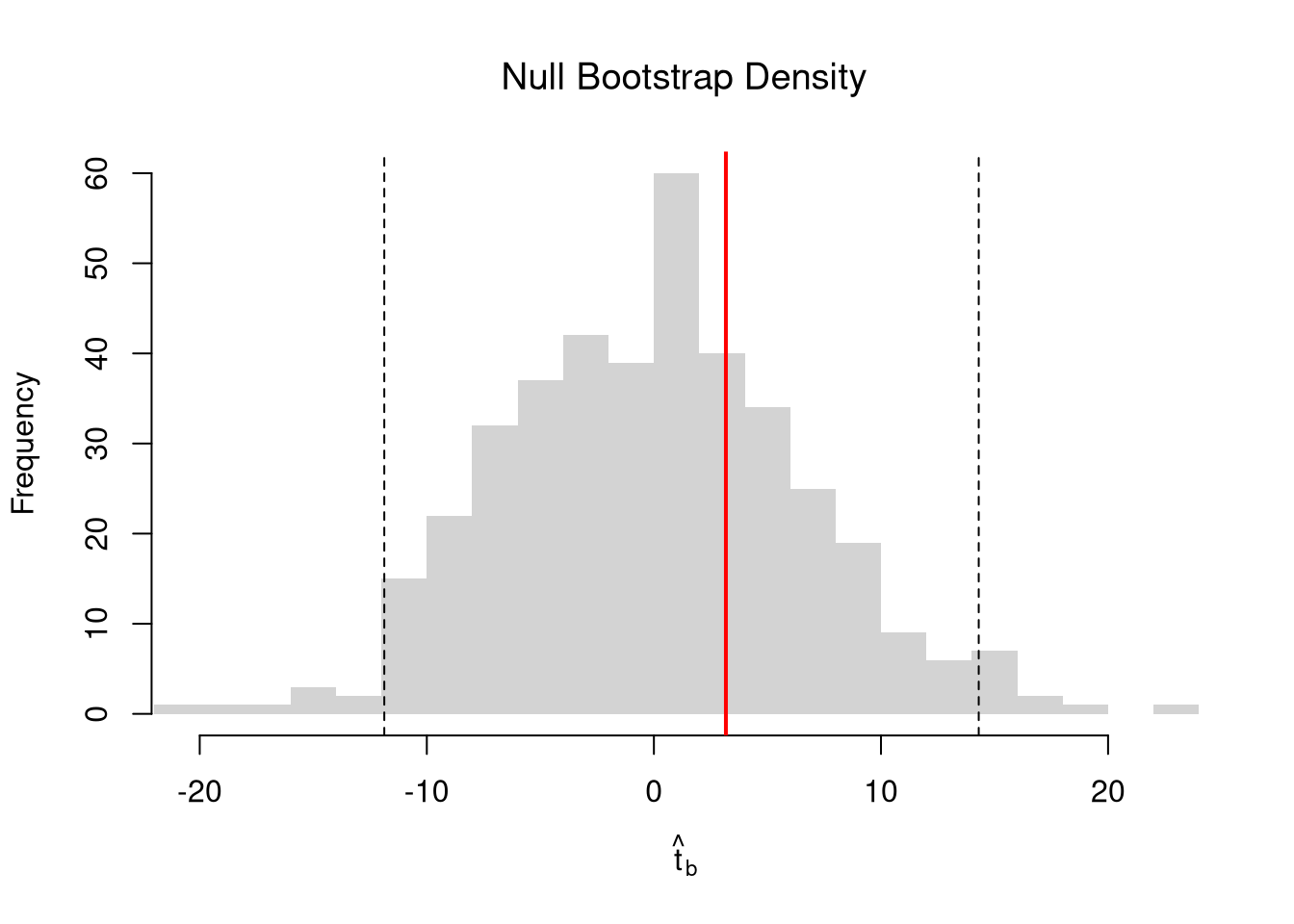

## Null Bootstrap Distribution
boot_ci_percentile0 <- quantile(boot_t0, probs=c(.025,.975))
hist(boot_t0, breaks=25,
    main='Null Bootstrap Density',
    font.main=1, border=NA,
    xlab=expression(hat(t)[b]),
    xlim=range(boot_t0))
abline(v=boot_ci_percentile0, lty=2)
abline(v=tvalue, col="red", lwd=2)

Alternatively, you can impose the null by recentering the sampling distribution around the theoretical value; \[ \hat{t} = \frac{\hat{\beta} - \beta_{0} }{\hat{\sigma}_{\hat{\beta}}} \]. Under some assumptions, the null distribution is t-distributed; \(\sim t_{n-2}\). (For more on parametric t-testing based on statistical theory, see https://www.econometrics-with-r.org/4-lrwor.html.)

In any case, we can calculate a p-value: the probability you would see something as extreme as your statistic under the null (assuming your null hypothesis was true). We can always calculate a p-value from an explicit null distribution.

## One Sided Test for P(t > boot_t | Null)=1- P(t < boot_t | Null)
That_NullDist1 <- ecdf(boot_t0)
Phat1  <- 1-That_NullDist1(jack_t)

## Two Sided Test for P(t > jack_t or  t < -jack_t | Null)
That_NullDist2 <- ecdf(abs(boot_t0))

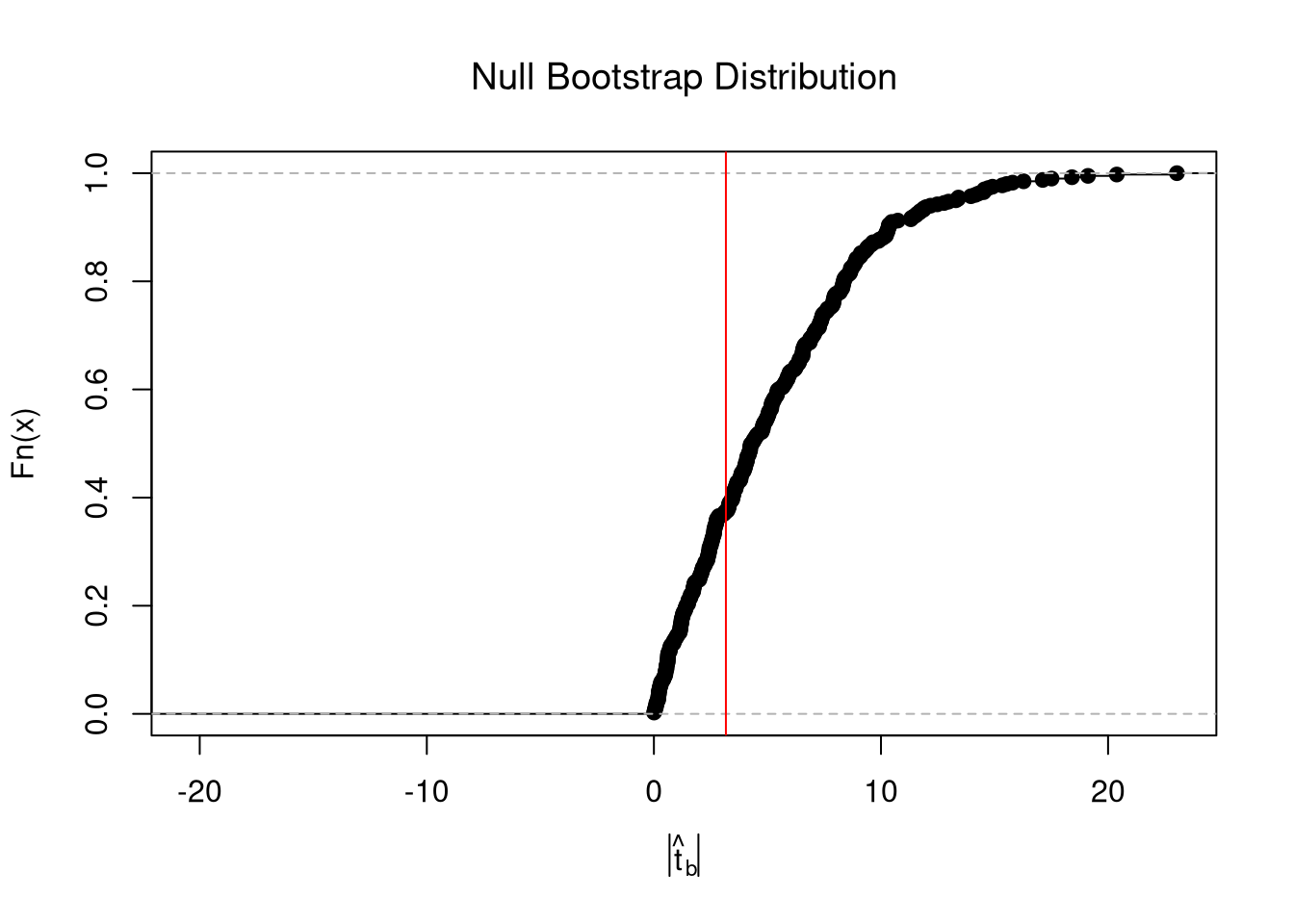

plot(That_NullDist2, xlim=range(boot_t0, jack_t),
    xlab=expression( abs(hat(t)[b]) ),
    main='Null Bootstrap Distribution', font.main=1)
abline(v=tvalue, col='red')

Phat2  <-  1-That_NullDist2( abs(tvalue))
Phat2

## [1] 0.6641604

7.4 Prediction Intervals

In addition to confidence intervals, we can also compute a prediction interval which estimates the range of variability across different samples for the outcomes. These intervals also take into account the residuals— the variability of individuals around the mean.

## Bootstrap Prediction Interval
boot_resids <- lapply(boot_regs, function(reg_b){
    e_b <- resid(reg_b)
    x_b <- reg_b$model$x
    res_b <- cbind(e_b, x_b)
})
boot_resids <- as.data.frame(do.call(rbind, boot_resids))
## Homoskedastic
ehat <- quantile(boot_resids$e_b, probs=c(.025, .975))
x <- quantile(xy$x,probs=seq(0,1,by=.1))
boot_pi <- coef(reg)[1] + x*coef(reg)['x']
boot_pi <- cbind(boot_pi + ehat[1], boot_pi + ehat[2])

## Plot Bootstrap PI
plot(y~x, dat=xy, pch=16, main='Prediction Intervals',
    ylim=c(-5,20), font.main=1)
polygon( c(x, rev(x)), c(boot_pi[,1], rev(boot_pi[,2])),
    col=grey(0,.2), border=NA)

## Parametric PI (For Comparison)
pi <- predict(reg, interval='prediction', newdata=data.frame(x))
lines( x, pi[,'lwr'], lty=2)
lines( x, pi[,'upr'], lty=2)

For a nice overview of different types of intervals, see https://www.jstor.org/stable/2685212. For an in-depth view, see “Statistical Intervals: A Guide for Practitioners and Researchers” or “Statistical Tolerance Regions: Theory, Applications, and Computation”. See https://robjhyndman.com/hyndsight/intervals/ for constructing intervals for future observations in a time-series context. See Davison and Hinkley, chapters 5 and 6 (also Efron and Tibshirani, or Wehrens et al.)

7.5 Locally Linear

Segmented/piecewise regressions

## Globally Linear
reg <- lm(y~x, data=xy)

# Diagnose Fit
#plot( fitted(reg), resid(reg), pch=16, col=grey(0,.5))
#plot( xy$x, resid(reg), pch=16, col=grey(0,.5))

## Linear in 2 Pieces (subsets)
xcut2 <- cut(xy$x,2)
xy_list2 <- split(xy, xcut2)
regs2 <- lapply(xy_list2, function(xy_s){
    lm(y~x, data=xy_s)
})
sapply(regs2, coef)

##             (31.9,61.5] (61.5,91.1]
## (Intercept)  -0.2836303  4.15337509
## x             0.1628157  0.04760783

## Linear in 3 Pieces (subsets)
xcut3 <- cut(xy$x, seq(32,92,by=20)) ## Finer Bins
xy_list3 <- split(xy, xcut3)
regs3 <- lapply(xy_list3, function(xy_s){
    lm(y~x, data=xy_s)
})
sapply(regs3, coef)

##                (32,52]    (52,72]      (72,92]
## (Intercept) 4.60313390 2.36291848  8.653829140
## x           0.08233618 0.08132841 -0.007174454

Compare Predictions

pred1 <- data.frame(yhat=predict(reg), x=reg$model$x)
pred1 <- pred1[order(pred1$x),]

pred2 <- lapply(regs2, function(reg){
    data.frame(yhat=predict(reg), x=reg$model$x)
})
pred2 <- do.call(rbind,pred2)
pred2 <- pred2[order(pred2$x),]

pred3 <- lapply(regs3, function(reg){
    data.frame(yhat=predict(reg), x=reg$model$x)
})
pred3 <- do.call(rbind,pred3)
pred3 <- pred3[order(pred3$x),]

## Compare Predictions

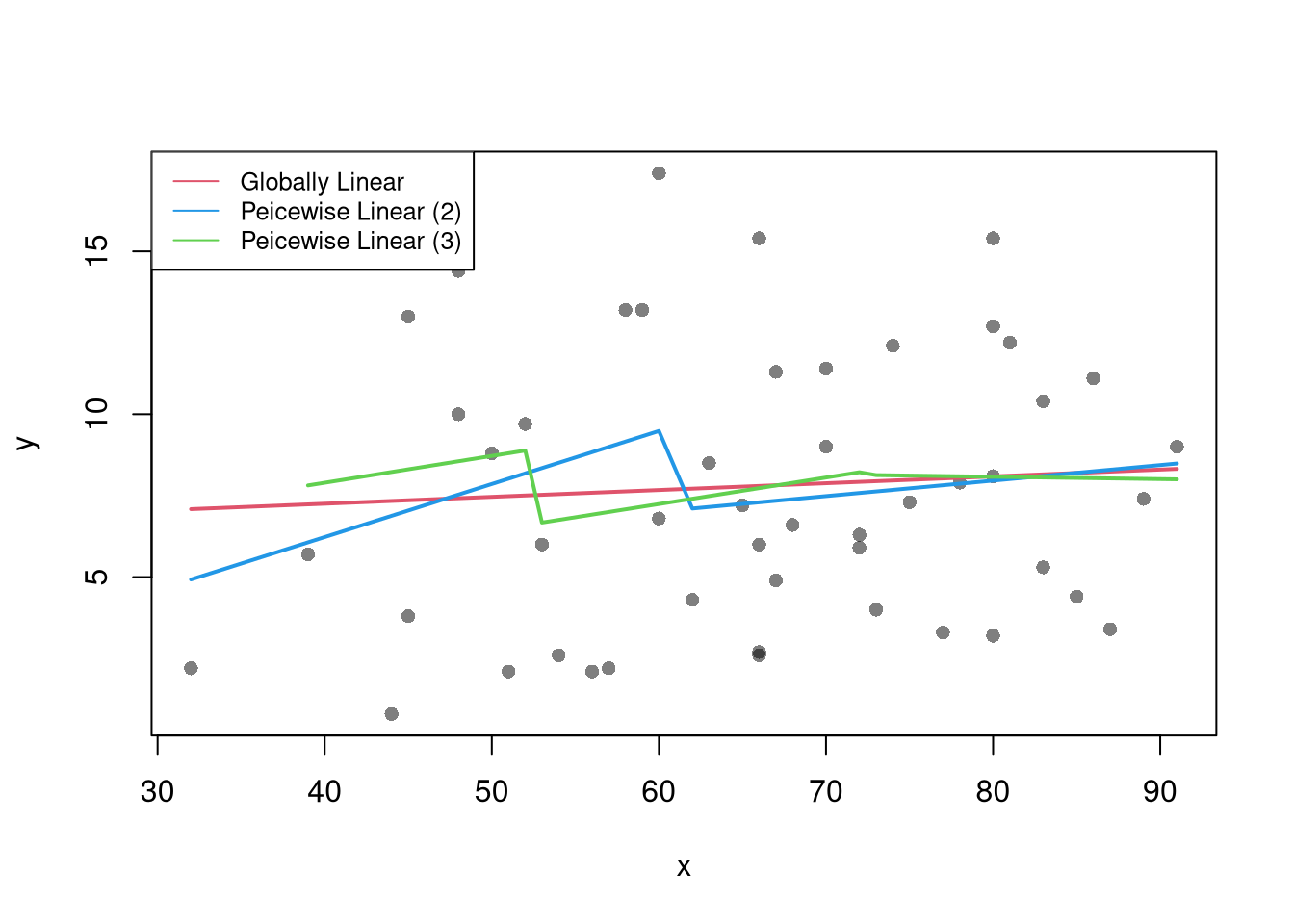

plot(y ~ x, pch=16, col=grey(0,.5), dat=xy)
lines(yhat~x, pred1, lwd=2, col=2)
lines(yhat~x, pred2, lwd=2, col=4)
lines(yhat~x, pred3, lwd=2, col=3)
legend('topleft',
    legend=c('Globally Linear', 'Peicewise Linear (2)','Peicewise Linear (3)'),
    lty=1, col=c(2,4,3), cex=.8)

Local linear regressions conduct a linear regresssion for each data point using a subsample of data around it.

## ``Naive" Smoother
pred_fun <- function(x0, h, xy){
    ## Assign equal weight to observations within h distance to x0
    ## 0 weight for all other observations
    ki   <- dunif(xy$x, x0-h, x0+h)
    llls <- lm(y~x, data=xy, weights=ki)
    yhat_i <- predict(llls, newdata=data.frame(x=x0))
}

X0 <- sort(unique(xy$x))
pred_lo1 <- sapply(X0, pred_fun, h=2, xy=xy)
pred_lo2 <- sapply(X0, pred_fun, h=20, xy=xy)

plot(y~x, pch=16, data=xy, col=grey(.5,.5),
    ylab='Murder Rate', xlab='Population Density')
cols <- c(rgb(.8,0,0,.5), rgb(0,0,.8,.5))
lines(X0, pred_lo1, col=cols[1], lwd=1, type='o')
lines(X0, pred_lo2, col=cols[2], lwd=1, type='o')
legend('topleft', title='Locally Linear',
    legend=c('h=2 ', 'h=20'),
    lty=1, col=cols, cex=.8)

See https://shinyserv.es/shiny/kreg/ for a nice illustration. Also note that you can use adaptive bandwidths to have a similar number of data points in each subsample (especially useful when \(X\) is not uniform.)

## Adaptive-width subsamples with non-uniform weights
xy0 <- xy[order(xy$x),]

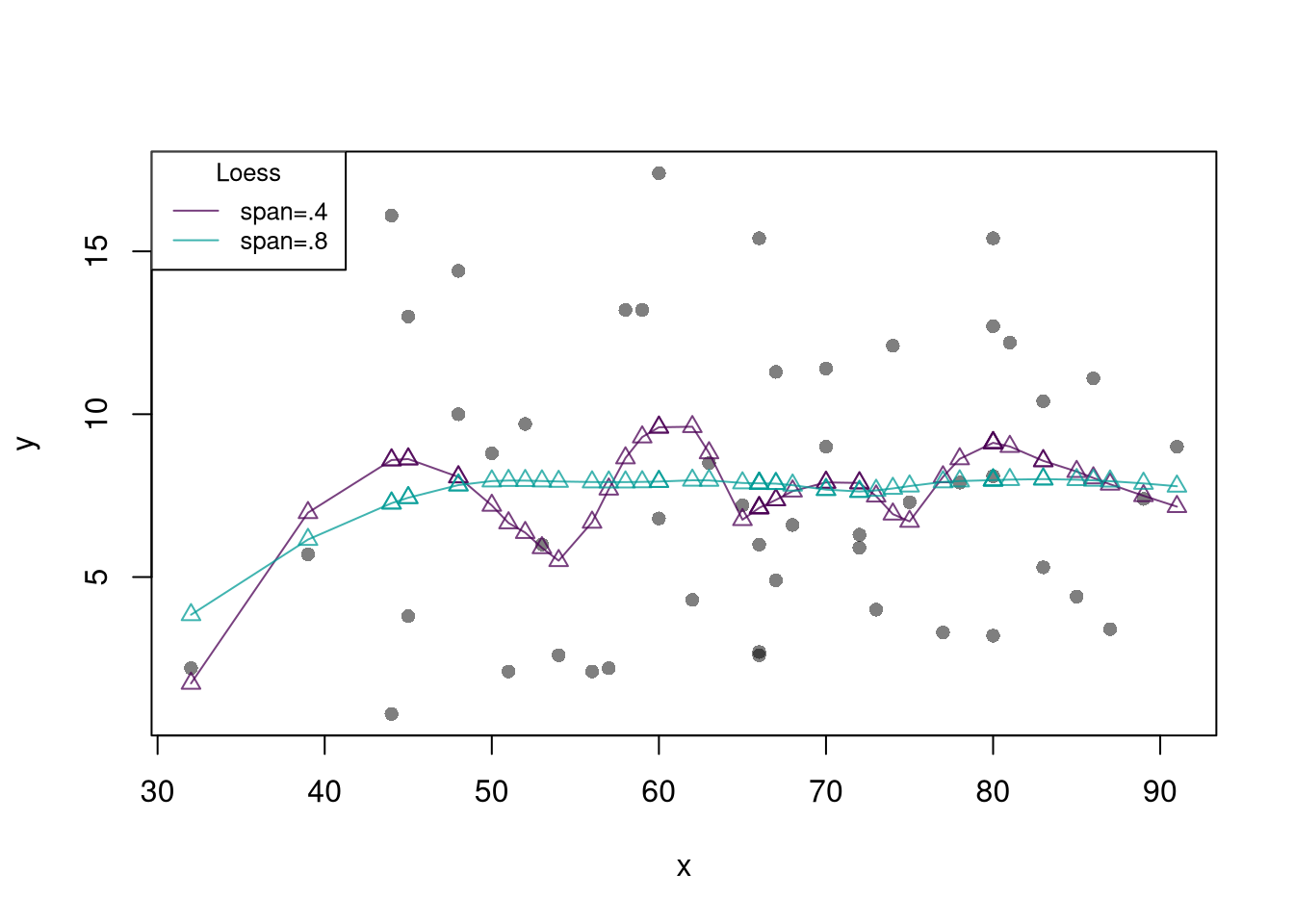

plot(y~x, pch=16, col=grey(0,.5), dat=xy0)

reg_lo4 <- loess(y~x, data=xy0, span=.4)
reg_lo8 <- loess(y~x, data=xy0, span=.8)

cols <- hcl.colors(3,alpha=.75)[-3]
lines(xy0$x, predict(reg_lo4),
    col=cols[1], type='o', pch=2)
lines(xy0$x, predict(reg_lo8),
    col=cols[2], type='o', pch=2)

legend('topleft', title='Loess',
    legend=c('span=.4 ', 'span=.8'),
    lty=1, col=cols, cex=.8)

The smoothed predicted values estimate the local means. So we can also construct confidence bands

## Loess
xy0 <- xy[order(xy$x),]
X0 <- unique(xy0$x)
reg_lo <- loess(y~x, data=xy0, span=.8)

## Jackknife CI
jack_lo <- sapply(1:nrow(xy), function(i){
    xy_i <- xy[-i,]
    reg_i <- loess(y~x, dat=xy_i, span=.8)
    predict(reg_i, newdata=data.frame(x=X0))
})
jack_cb <- apply(jack_lo,1, quantile,
    probs=c(.025,.975), na.rm=T)

## Plot

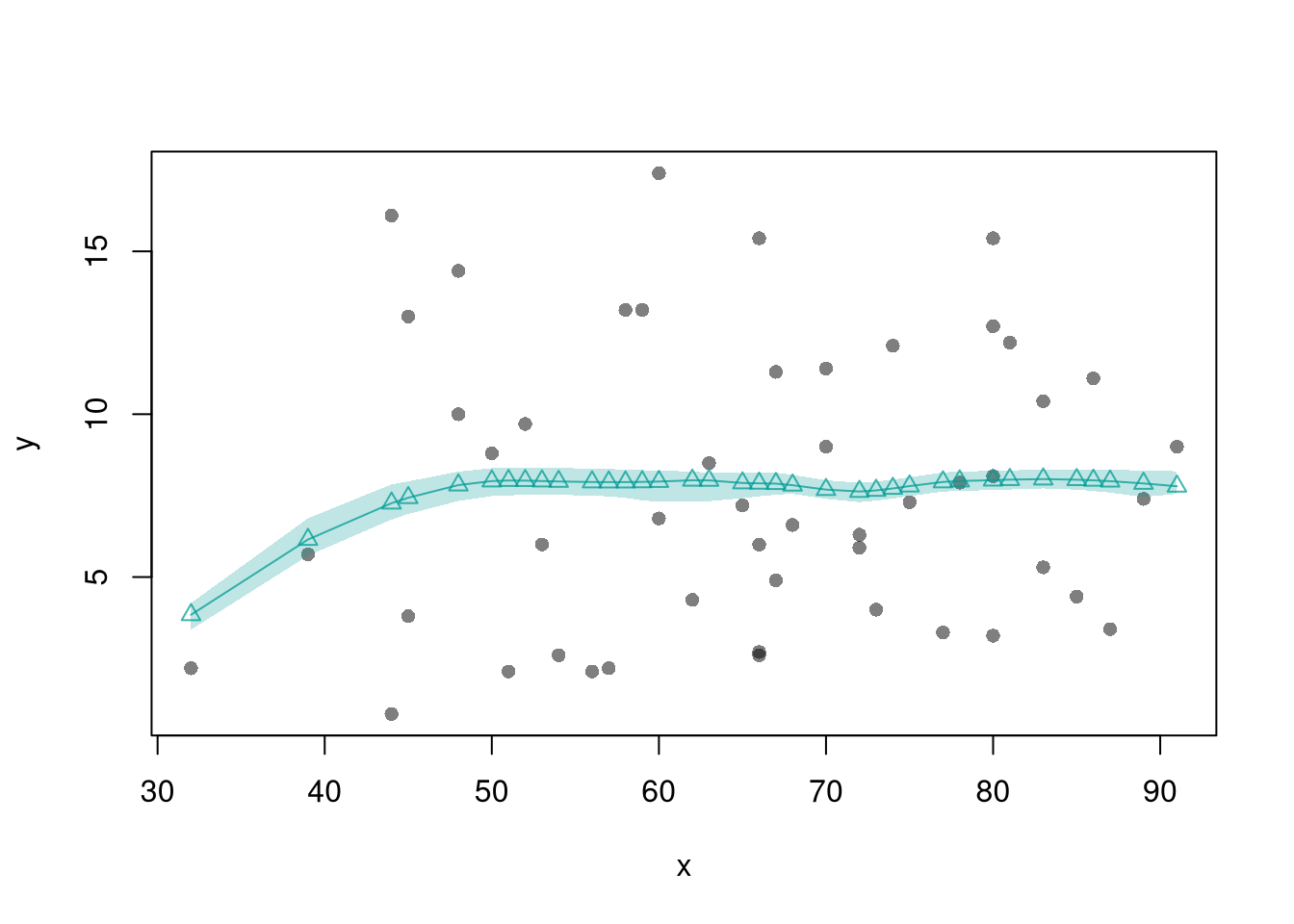

plot(y~x, pch=16, col=grey(0,.5), dat=xy0)
preds_lo <- predict(reg_lo, newdata=data.frame(x=X0))
lines(X0, preds_lo,
    col=hcl.colors(3,alpha=.75)[2],
    type='o', pch=2)
## Plot CI
polygon(
    c(X0, rev(X0)),
    c(jack_cb[1,], rev(jack_cb[2,])),
    col=hcl.colors(3,alpha=.25)[2],
    border=NA)

You can also construct prediction bands

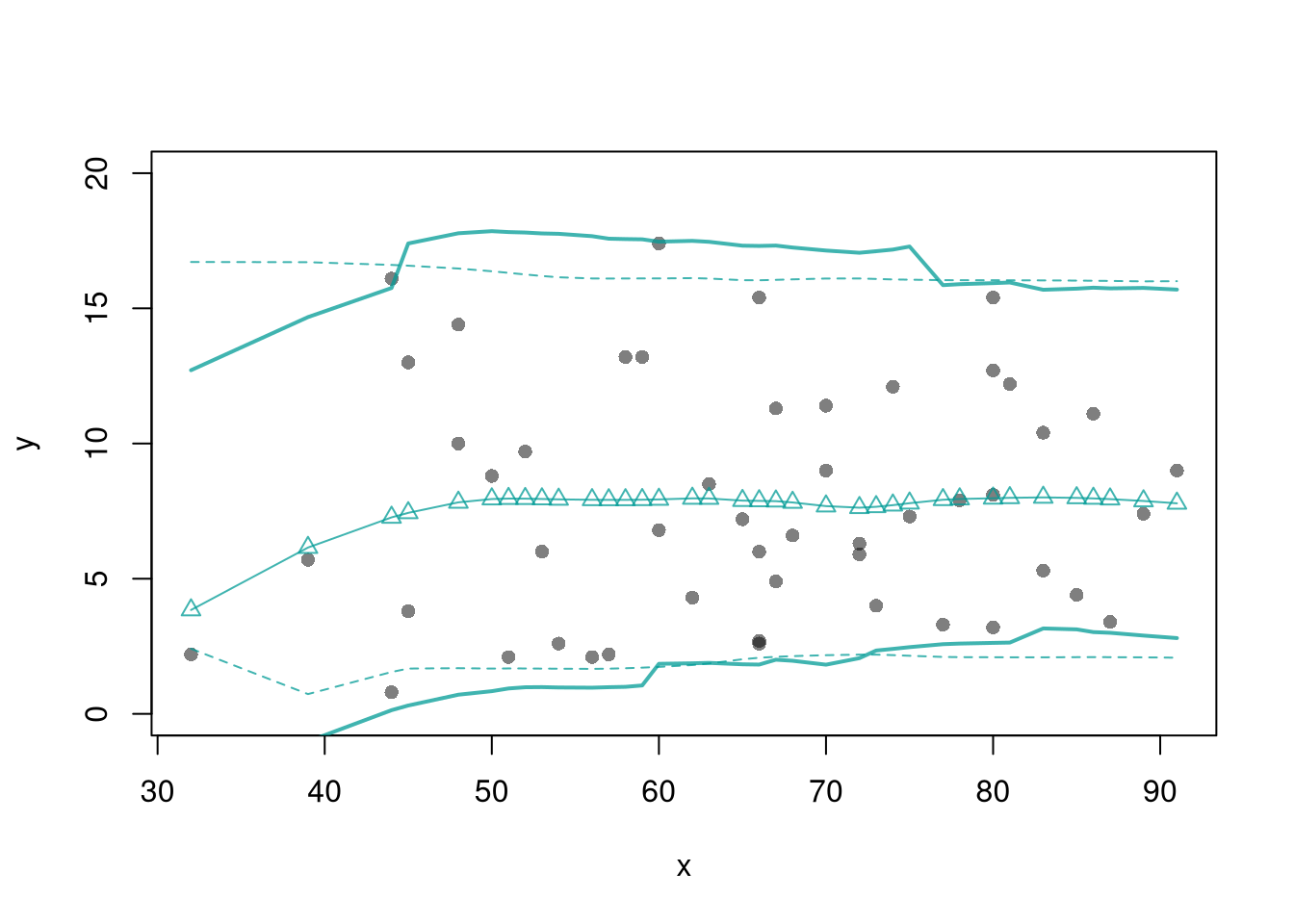

plot(y~x, pch=16, col=grey(0,.5),
    dat=xy0, ylim=c(0, 20))
lines(X0, preds_lo,
    col=hcl.colors(3,alpha=.75)[2],
    type='o', pch=2)

## Estimate Residuals CI at design points
res_lo <- sapply(1:nrow(xy), function(i){
    y_i <- xy[i,'y']
    preds_i <- jack_lo[,i]
    resids_i <- y_i - preds_i
})
res_cb <- apply(res_lo, 1, quantile,
    probs=c(.025,.975), na.rm=T)
## Plot
lines( X0, preds_lo +res_cb[1,],
    col=hcl.colors(3,alpha=.75)[2], lt=2)
lines( X0, preds_lo +res_cb[2,],
    col=hcl.colors(3,alpha=.75)[2], lty=2)




## Smooth estimates
res_lo <- lapply(1:nrow(xy), function(i){
    y_i <- xy[i,'y']
    x_i <- xy[i,'x']
    preds_i <- jack_lo[,i]
    resids_i <- y_i - preds_i
    cbind(e=resids_i, x=x_i)
})
res_lo <- as.data.frame(do.call(rbind, res_lo))

res_fun <- function(x0, h, res_lo){
    ## Assign equal weight to observations within h distance to x0
    ## 0 weight for all other observations
    ki <- dunif(res_lo$x, x0-h, x0+h)
    ei <- res_lo[ki!=0,'e']
    res_i <- quantile(ei, probs=c(.025,.975), na.rm=T)
}
X0 <- sort(unique(xy$x))
res_lo2 <- sapply(X0, res_fun, h=15, res_lo=res_lo)

lines( X0, preds_lo +res_lo2[1,],
    col=hcl.colors(3,alpha=.75)[2], lty=1, lwd=2)
lines( X0, preds_lo +res_lo2[2,],
    col=hcl.colors(3,alpha=.75)[2], lty=1, lwd=2)
