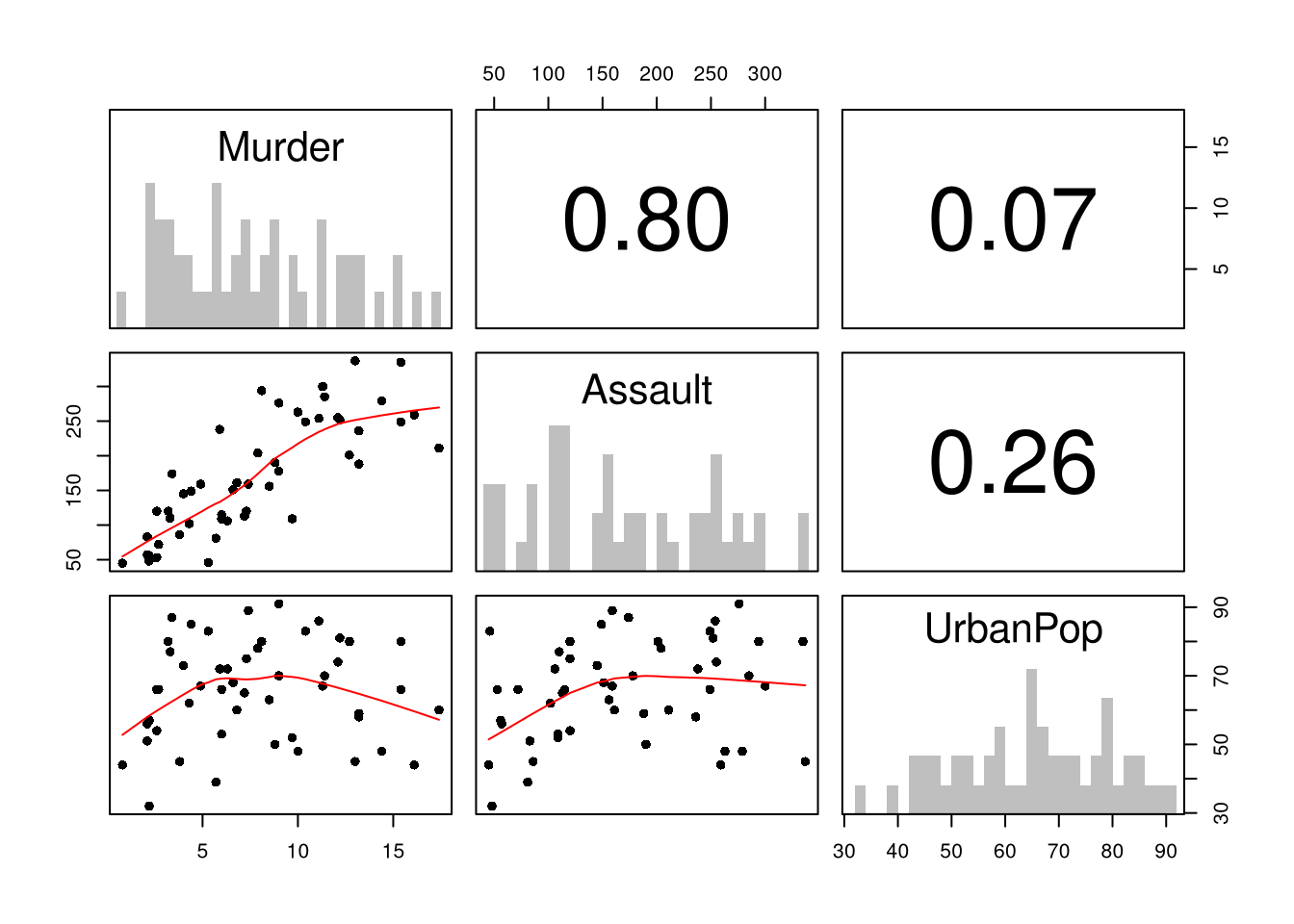

First, note that you can summarize a dataset with multiple variables using the previous tools.
Code
# Inspect Dataset on police arrests for the USA in 1973head(USArrests)## Murder Assault UrbanPop Rape## Alabama 13.2 236 58 21.2## Alaska 10.0 263 48 44.5## Arizona 8.1 294 80 31.0## Arkansas 8.8 190 50 19.5## California 9.0 276 91 40.6## Colorado 7.9 204 78 38.7library(psych)pairs.panels( USArrests[,c('Murder','Assault','UrbanPop')],hist.col=grey(0,.25), breaks=30, density=F, hist.border=NA, # Diagonalellipses=F, rug=F, smoother=F, pch=16, col='red'# Lower Triangle )
11.1 Multiple Linear Regression
With \(K\) variables, the linear model is \[
y_i=\beta_0+\beta_1 x_{i1}+\beta_2 x_{i2}+\ldots+\beta_K x_{iK}+\epsilon_i = [1~~ x_{i1} ~~...~~ x_{iK}] \beta + \epsilon_i
\] and our objective is \[
min_{\beta} \sum_{i=1}^{N} (\epsilon_i)^2.
\]
Denoting \[
y= \begin{pmatrix}
y_{1} \\ \vdots \\ y_{N}
\end{pmatrix} \quad
\textbf{X} = \begin{pmatrix}
1 & x_{11} & ... & x_{1K} \\
& \vdots & & \\
1 & x_{N1} & ... & x_{NK}
\end{pmatrix},
\] we can also write the model and objective in matrix form \[
y=\textbf{X}\beta+\epsilon\\
min_{\beta} (\epsilon' \epsilon)
\]

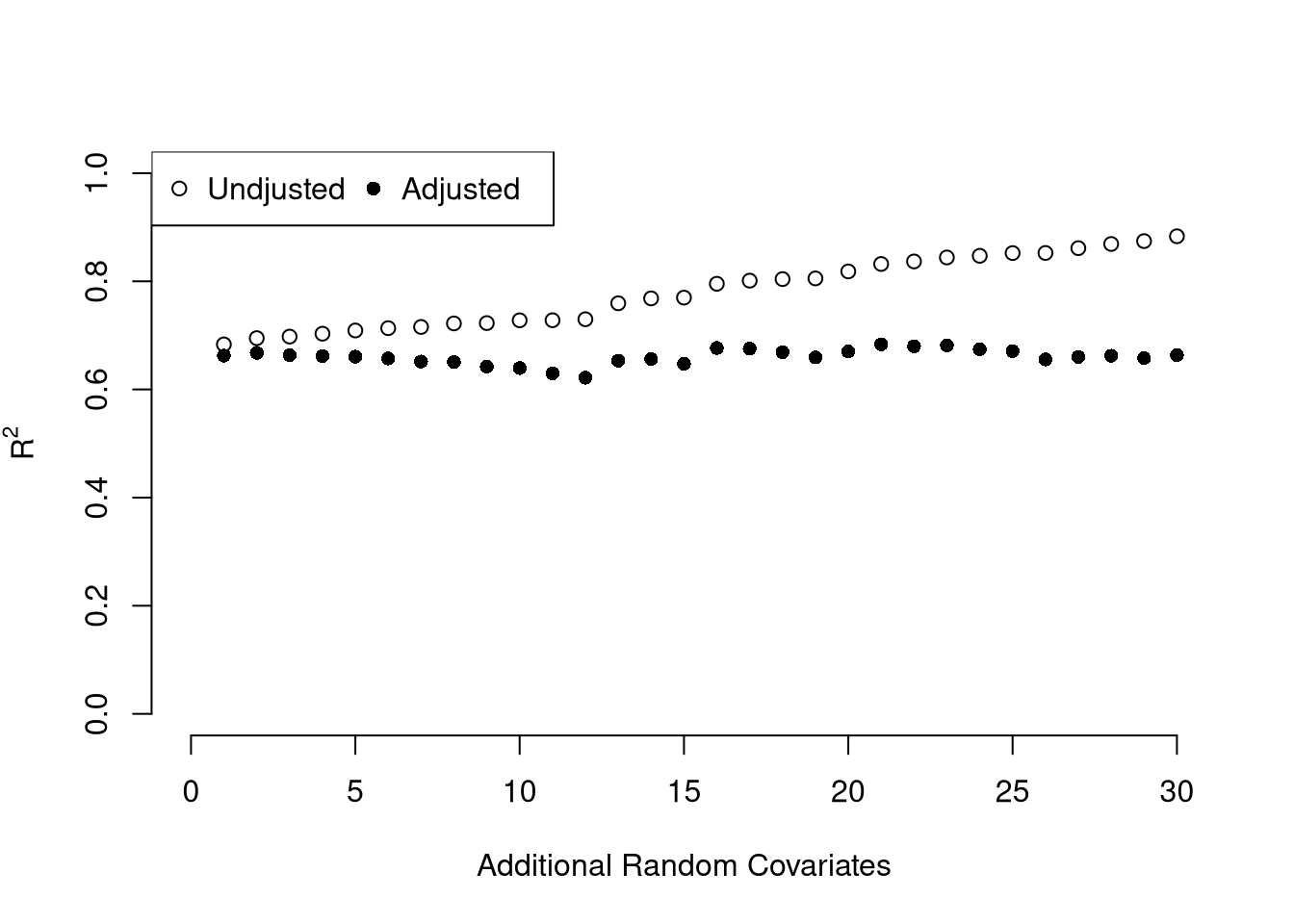

We can also again compute sums of squared errors. Adding random data may sometimes improve the fit, however, so we adjust the \(R^2\) by the number of covariates \(K\). \[
R^2 = \frac{ESS}{TSS}=1-\frac{RSS}{TSS}\\
R^2_{\text{adj.}} = 1-\frac{N-1}{N-K}(1-R^2)
\]
So far, we have discussed cardinal data where the difference between units always means the same thing: e.g., \(4-3=2-1\). There are also factor variables
Ordered: refers to Ordinal data. The difference between units means something, but not always the same thing. For example, \(4th - 3rd \neq 2nd - 1st\).
Unordered: refers to Categorical data. The difference between units is meaningless. For example, \(B-A=?\)
To analyze either factor, we often convert them into indicator variables or dummies; \(D_{c}=\mathbf{1}( Factor = c)\). One common case is if you have observations of individuals over time periods, then you may have two factor variables. An unordered factor that indicates who an individual is; for example \(D_{i}=\mathbf{1}( Individual = i)\), and an order factor that indicates the time period; for example \(D_{t}=\mathbf{1}( Time \in [month~ t, month~ t+1) )\). There are many other cases you see factor variables, including spatial ID’s in purely cross sectional data.
Be careful not to handle categorical data as if they were cardinal. E.g., generate city data with Leipzig=1, Lausanne=2, LosAngeles=3, … and then include city as if it were a cardinal number (that’s a big no-no). The same applied to ordinal data; PopulationLeipzig=2, PopulationLausanne=3, PopulationLosAngeles=1.
With factors, you can still include them in the design matrix of an OLS regression \[
y_{it} = x_{it} \beta_{x} + d_{t}\beta_{t}
\] When, as commonly done, the factors are modeled as being additively seperable, they are modeled “fixed effects”.1 Simply including the factors into the OLS regression yields a “dummy variable” fixed effects estimator. Hansen Econometrics, Theorem 17.1:The fixed effects estimator of \(\beta\) algebraically equals the dummy variable estimator of \(\beta\). The two estimators have the same residuals.
With fixed effects, we can also compute averages for each group and construct a between estimator: \(\bar{y}_i = \alpha + \bar{x}_i \beta\). Or we can subtract the average from each group to construct a within estimator: \((y_{it} - \bar{y}_i) = (x_{it}-\bar{x}_i)\beta\).
But note that many factors are not additively separable. This is easy to check with an F-test;
Code
reg0 <-lm(y~-1+x+fo+fu, dat_f)reg1 <-lm(y~-1+x+fo*fu, dat_f)reg2 <-lm(y~-1+x*fo*fu, dat_f)anova(reg0, reg2)## Analysis of Variance Table## ## Model 1: y ~ -1 + x + fo + fu## Model 2: y ~ -1 + x * fo * fu## Res.Df RSS Df Sum of Sq F Pr(>F) ## 1 993 88950 ## 2 980 6022 13 82928 1038.1 < 2.2e-16 ***## ---## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1anova(reg0, reg1, reg2)## Analysis of Variance Table## ## Model 1: y ~ -1 + x + fo + fu## Model 2: y ~ -1 + x + fo * fu## Model 3: y ~ -1 + x * fo * fu## Res.Df RSS Df Sum of Sq F Pr(>F) ## 1 993 88950 ## 2 989 12093 4 76857 3126.98 < 2.2e-16 ***## 3 980 6022 9 6071 109.78 < 2.2e-16 ***## ---## Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
11.3 Variability Estimates
To estimate the variability of our estimates, we can use the same data-driven methods introduced in the last section. As before, we can conduct independent hypothesis tests using t-values.
We can also conduct joint tests that account for interdependancies in our estimates. For example, to test whether two coefficients both equal \(0\), we bootstrap the joint distribution of coefficients.
We can also use an \(F\) test for any \(q\) hypotheses. Specifically, when \(q\) hypotheses restrict a model, the degrees of freedom drop from \(k_{u}\) to \(k_{r}\) and the residual sum of squares \(RSS=\sum_{i}(y_{i}-\widehat{y}_{i})^2\) typically increases. We compute the statistic \[
F_{q} = \frac{(RSS_{r}-RSS_{u})/(k_{u}-k_{r})}{RSS_{u}/(N-k_{u})}
\]
If you test whether all \(K\) variables are significant, the restricted model is a simple intercept and \(RSS_{r}=TSS\), and \(F_{q}\) can be written in terms of \(R^2\): \(F_{K} = \frac{R^2}{1-R^2} \frac{N-K}{K-1}\). The first fraction is the relative goodness of fit, and the second fraction is an adjustment for degrees of freedom (similar to how we adjusted the \(R^2\) term before).

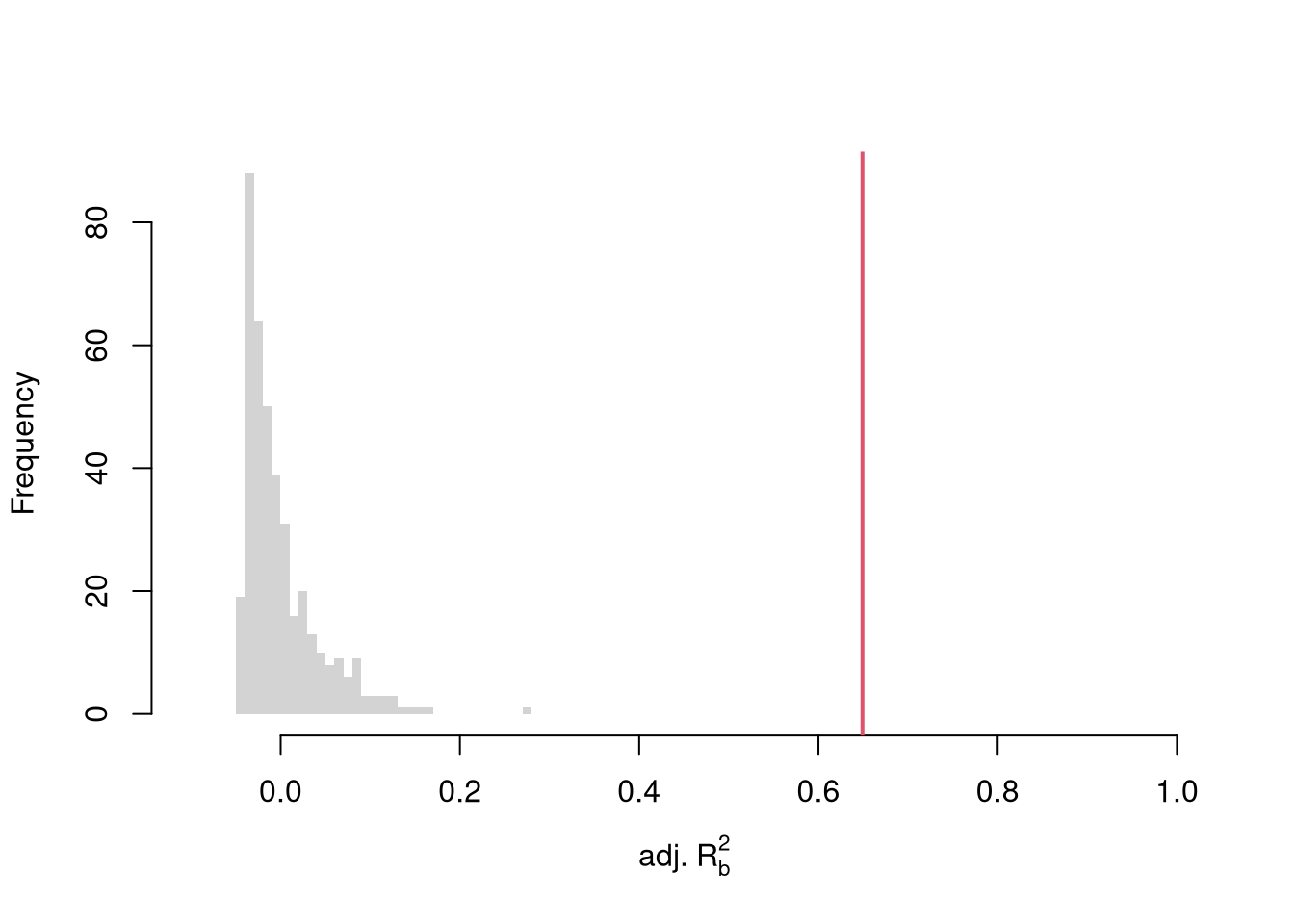

To conduct a hypothesis test, first compute a null distribution by randomly reshuffling the outcomes and recompute the \(F\) statistic, and then compare how often random data give something as extreme as your initial statistic. For some intuition on this F test, examine how the adjusted \(R^2\) statistic varies with bootstrap samples.
Code
# Bootstrap under the nullboots <-1:399boot_regs0 <-lapply(boots, function(b){# Generate bootstrap sample xy_b <- USArrests b_id <-sample( nrow(USArrests), replace=T)# Impose the null xy_b$Murder <- xy_b$Murder[b_id]# Run regression reg_b <-lm(Murder~Assault+UrbanPop, dat=xy_b)})# Get null distribution for adjusted R2R2adj_sim0 <-sapply(boot_regs0, function(reg_k){summary(reg_k)$adj.r.squared })hist(R2adj_sim0, xlim=c(-.1,1), breaks=25, border=NA,main='', xlab=expression('adj.'~R[b]^2))# Compare to initial statisticabline(v=summary(reg)$adj.r.squared, lwd=2, col=2)
Note that hypothesis testing is not to be done routinely, as additional complications arise when testing multiple hypothesis sequentially.
Under some additional assumptions \(F_{q}\) follows an F-distribution. For more about F-testing, see https://online.stat.psu.edu/stat501/lesson/6/6.2 and https://www.econometrics.blog/post/understanding-the-f-statistic/
There are also random effects: the factor variable comes from a distribution that is uncorrelated with the regressors. This is rarely used in economics today, however, and are mostly included for historical reasons and special cases where fixed effects cannot be estimated due to data limitations.↩︎
